BNA2174_PI

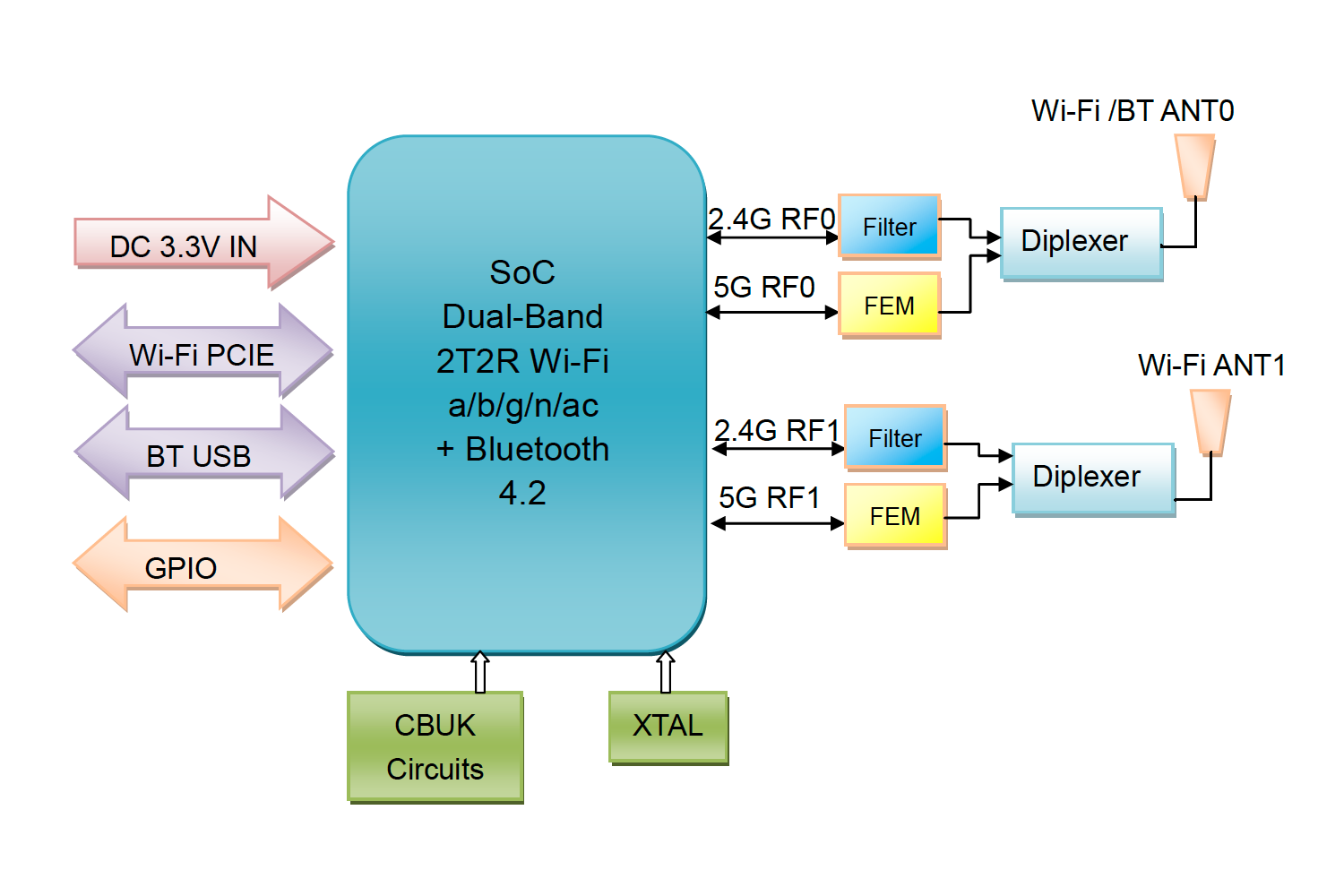

英BNA2174 is a Dual Band 2T2R Wi-Fi + BT Dual Mode module which has all of the WiFi and Bluetooth functionalities. The wireless module complies with IEEE 802.11 a/b/g/n/ac 2×2 MIMO. The Bluetooth supports BT 4.2 + HS, BLE and is backwards compatible with BT 1.X, 2.X Enhanced Data Rate. The integrated module provides PCIE Interface for Wi-Fi and USB interface for Bluetooth.
2x2 Wi-Fi + Bluetooth 4.2 (HS) Half-Mini PCI-e Card
| WI-FI SPEC | 2x2 802.11 a/b/g/n/ac dual-band radio with virtual-simultaneous dual-band operation |
| WLAN HOST INTERFACE | Standard PCI-e interfaces |
| BT SPEC | Bluetooth 4.2 (EDR + HS + BLE) |
| BT HOST DIGITAL INTERFACE | USB |
| PCM | |
| CONCURRENT | Concurrent WLAN and Bluetooth operation |
| SIMULTANEOUS | |
| GPS | |
| FM | |
| IEEE CO-EXISTENCE | |
| ECI | |
| SECI | |
| ANTENNA | 2 x External U.F.L connector |
| SECURITY | |
| HSF | Lead Free / RoHS |
| MCU | |
| OTHER | Dimension: 29.85 (±0.15) x 26.65 (±0.15) x 2.64 (±0.2) mm Operating Temperature: -40°C to 85°C |
